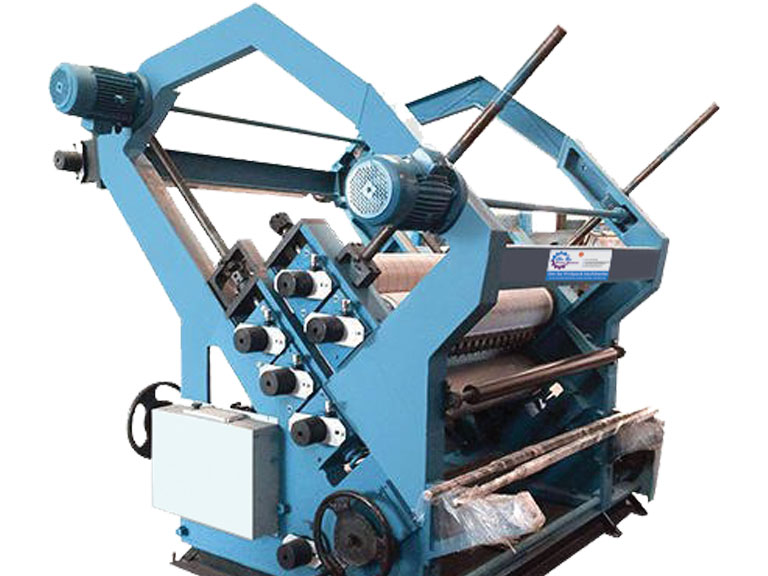

Double Profile Corrugation Machine
Double Profile Corrugation Machine
Manufacturers & Exporters
Double Profile Single Face Corrugation Machine with bearing mounted rolls. Saves precious space in factory.
Machine is supplied with two sets of any two types of flute roll.
Immediate & trouble-free change over of fluting medium in just five minutes. Motorized lifting & lowering of fluting roll assembly.
The machine is recommended to be used on steam heating or thermic fluid heating.
Approximate output of machine is 110 rft/ min.
Technical Specifications:
Size
45”
52”
62”
72”
85”
MOTOR H. P.
5
7.5
10
15
20
HEATING LOAD APPROX. (KW)
27
39
45
50
50
GROSS WEIGHT (Kgs.)
6200
6700
7500
9000
11000
SPEED/MIN. (Ft.)
120
120
120
120
120
